Red Roo 770 150mm (6") 4x4

Enquire for Price
Available

The Red Roo 770 4x4 Wood Chipper is the ideal choice when a powerful compact machine is required. This woodchipper is powered by a 30hp (22kw) OHV Kohler Command petrol engine. Digital Auto-Feed controls the feed rate of the timber based on engine speed. Double edged knives are easily flipped providing a second cutting edge when needed.

Red Roo 660 150mm 6 Wood Chipper
Red Roo 660 150mm 6 inch 4x4
Red Roo 660 150mm 6 inch 4x4 on alloy trailer

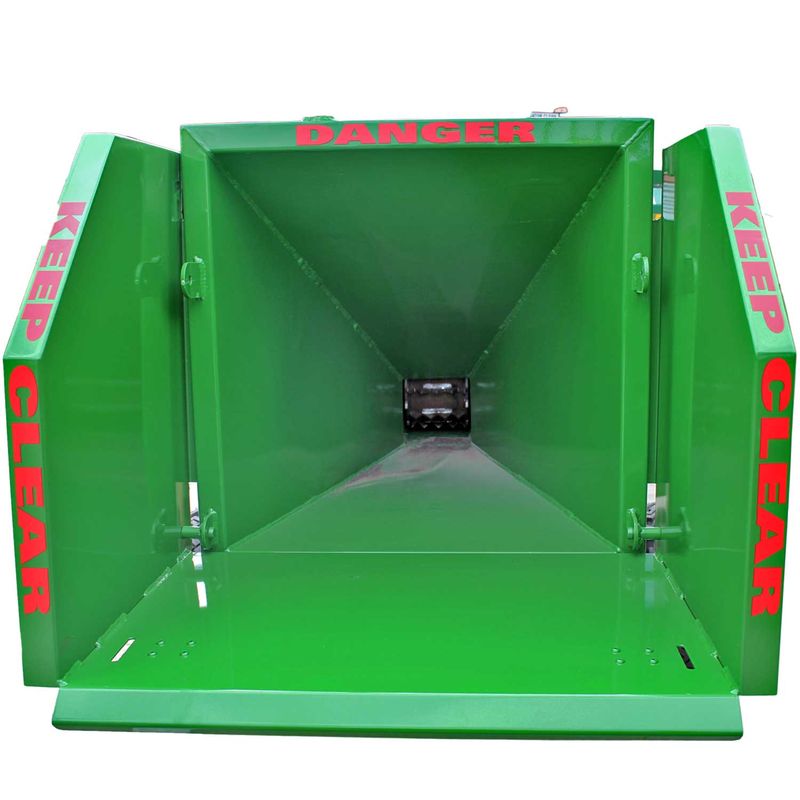

Red Roo 660 4x4 feed table
Red Roo 660 150mm 6" 4x4 Throat opening
Spread the word
  • Specifications
  • Features
  • Photos
  • Manuals
  • Videos
  • Reviews
Engine
OHV Kohler Command Pro Series 4-stroke Petrol
30HP (22Kw)
94 Lbs (43kg)
General
108" (2743mm)
35" (889mm)
87" (2209mm)
1800 lbs (8116kg)
8 ply 5.70 x 4
6 gallons (22 liters)
850 CCA 78DT - 72
2000 # Cap Screw Type Swing Up
Hydraulics
.329 in cu/rev
Direct Drive off Engine Mount
5.33 GPM
2500 PSI
6 gallons (22 liters)
Series Type
16,000 PSI Burst - Exceeds SAE 100R2
Chassis
2" (50mm) x 3" (76mm) with 3/16" (4mm) wall
12 gauge with 1" (25mm) tube frame
Sliding Positive Lock Engagement
12 gauge
High Density Polyethylene rubber mtd
High Density Polyethylene rubber mtd
Marine Battery Box
Two 3/4" Spring Loaded Pin
Bearings
2" (50mm) Tapered Roller
2" (50mm) Tapered Roller
2 1/2" (63mm) Removable
2" (50mm)
Chipper Disk
26" (660mm)
1 1/2" (38mm)
2 X 8.36" (212mm) X 4" (100mm) X 1/2" (12mm)
2 1/2" (63mm) x 6" (152mm) x 1/2" (12mm) AR400
Two 1/4" (6mm) x 3 1/2" (90mm) x 3 1/2" (90mm) x 9 1/2" (241mm) long
Feed System
22.8 in cu Top
5.33 GPM
Live – Driven off engine
Digital Fully Adjustable
360 Adjustable Swivel w/Deflector
Cutting System
6" (150mm) x 6" (150mm)
